Fissura Fine	Speckle	Textura 95RH	Onyx Black

Speckle

    High Density of 375 kg per cubic meter +/-10%
    Excellent sound absorption
    Good Fire Properties
    Mineral Fibre Ceilings

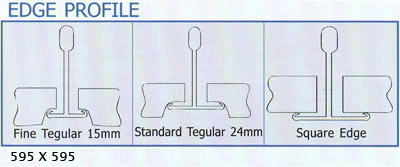

INSULA 95 RH is available in 13 / 15 with Square, Tegular edges.

INSULA Speckle is availiable in 13 /15 mm with Square , Tegular edges.
It is recommended to be used in General Office areas, Public Buildings, Educational Institutions, Gymnasia, Retail Outlets etc.

SPECKLE 95 SPECIFICATION
Speckle	595 X 595 X 13 mm	Square
Speckle	595 X 1195 X 13 mm	Square
Speckle	595 X 595 X 15 mm	Square
Speckle	595 X 595 X 15 mm	Square
Speckle	595 X 1195 X 15 mm	Square
Speckle	595 X 595 X 15 mm	Tegular
Speckle	595 X 1195 X 15 mm	Tegular

TECHNICAL DATA
Properties	Descriptions / Sizes / Values
Noise Reduction Coefficient (NRC) Ceiling Attenuation Clause (CAC)	0.70 36db
Light Reflectance	0.90
Fire Performance	Class0 / Class1
Edge	Square / Tegular
Grid Systems	24mm / 15mm
Humidity	95RH
