Minwool Rock Fibres Limited


LRB Mattresses	RB Slabs	Resin Bonded SPI

Minrock Lightly Bonded Mattressess (LRB) consist of fine fibres spun from selected rocks melted at a high temperature and bonded with a thermosetting resin. They are then felted in a predetermined fibre lay pattern and are baked to form preformed mattressess of pre determined density and thickness with uniform fibre distribution. Mattresses are then stitched,slit and chopped to specified dimensions.Minrock LRB has excellent stability and has no chicken feathering which pollutes the atmosphere during application. It has controlled thickness and density resulting in predictable heat lossess.

Applications

Minrock LRB mattressess are used for both hot and cold Insulation to conserve energy, maintain process temperature, provide personnel protection, prevent condensation and reduce noise level. Minrock LRB mattressess are used for thermal Insulation of pipe, tanks, equipments, boilers, electrostatic precipitators, flues and ventilation ducts, ovens, furnaces, kilns and fire Insulation of fire doors.

Standard size and Packing

Size of the Mattresses	1640 mm X 1220 mm
Thickness	25 mm to 100 mm
Density (Kg/Cu.m)	85, 100, 120, 150
Metal Facing	G.I.Hexagonal wire netting 3/4" X 24 G SS available on request
Standard Packing	Polythene bonded hessian / LDPE
Others options of wire netting, density & thickness are available on request.

Compression resistance Minrock mattressess offer high resistance to compression, Minrock LRB mattessess regain their normal thickness after removal of a compressive load.		Moisture Resistance Minrock rockwool mattressess are water repellant and do not absorb moisture by capillary action or ambient moisture from the atmosphere. Should blankets become wet, full thermal efficiency will be restored on drying

Corrosion Resistance Will not cause, initiate or promote corrosion.		Fire Resistance Minrock mattressess are incombustible and resist spread of flames.

Maximum Service Temperature 750 Deg/Cel		Flexibility Minrock mattressess are designed for maximum flexibility. They will essentially retain their thickness while conforming to virtually any irregular shape. Retention of fibres by the wire mesh prevents any cracking or breaking

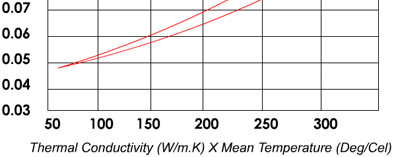

Thermal Conductivity Minrock products have low K-values for wide range of temperatures. Typical thermal conductivity values are given in the graph for various densities and mean temperatures.
